• Thread Type :Metric, PG and G ( PF ).

• Material Data :Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) for A.C.E.F parts.

Our black fittings are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.

UV ( Irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

• IP Protection :IP54.

• Working Temp :- 40 °C to 105 °C ( - 40 °F to 221 °F ).  Short-Term to 160 °C ( 320 °F ).

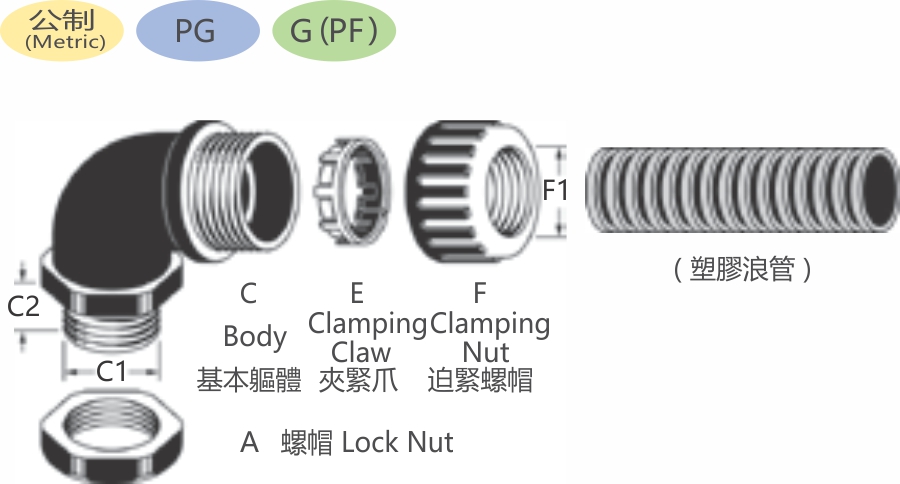

• Application :When tubings should be routed in parallel to the housing wall, these El ow Fittings are the right connectors to connect with them and to protect

cable conduits from sharp bending. In addtion, this Fitting with the Yongcun’s special compression clamping design also provide quick-fit, pullout strength and vibration proof functions of fering the excellent cost efficient on the cable protection system and suitably applied to any machines,devices and equipments.
