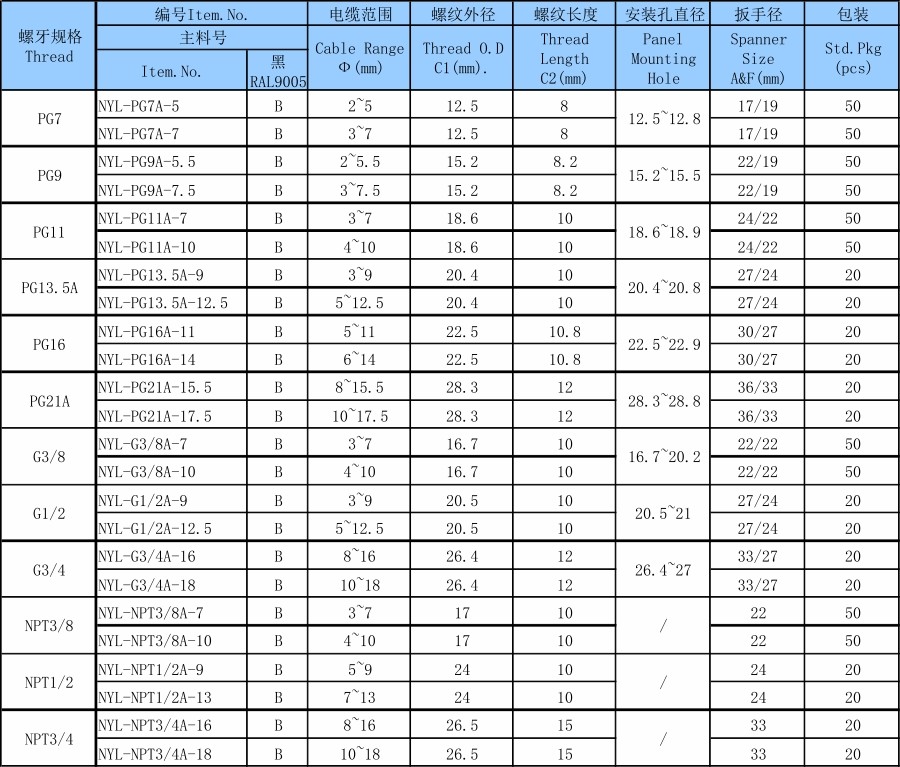

• Thread Type :PG, G ( PF ) and NPT.

• Material Data :Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) for A.C.F parts.  ( Contact us for Flammability V0 material )

Standard in weather-resistant EPDM rubbers for B.D parts.  ( NBR rubber is optional for oil-resistance applications )

Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.UV ( Irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

• IP Protection :IP68 - 5 bar.

• Working Temp. :- 40 °C to 105 °C ( - 40 °F to 221 °F ).  Short-Term to 160 °C ( 320 °F ).
